NIRVAAN ENTERPRISES
- Automatic closing doors with Full-Height Handle
- Corrosion Resistant Evaporator
- Advanced Electronic Controller with Display
- Rounded corners for Easy Cleaning
- Efficient Cooling with Improved Auto Defrosting
- Cleanable & Replaceable Door Gaskets
- Adjustable Legs with Caster Option
- Drip Tray with Heat Element
- GN Suitable
- Reliable quality
STAINLESS STEEL SERIES
Spl coated evaporator for long life
Cleanable and replaceable door gaskets
Perfect defrost for efficient cooling
Customer friendly designMODELS

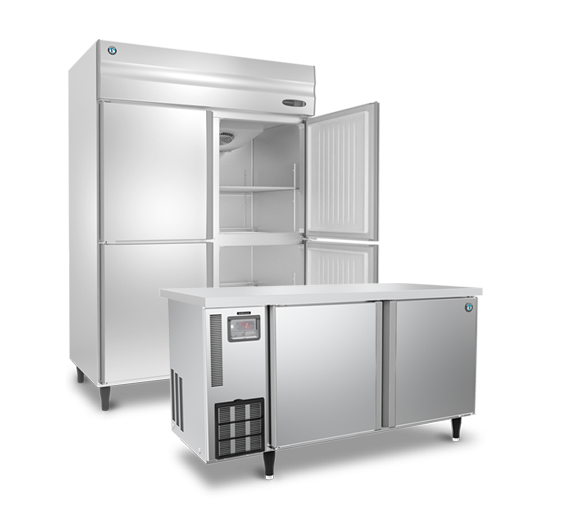

UP RIGHT CHILLERS
HRW-77MS4
HRW-127MS4
HRW-147MS4
HRW-77MS4-HG
HRW-147MS4-HG
SRC900-HL
HRW-77MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 700 (W) x 810 (D) x 2050 (H)
Internal dimension (mm): 596 (W) x 700 (D) x 1505 (H)
Gross Volume: 628 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 116 Kg
HRW-127MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1200 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1076 (W) x 690 (D) x 1495 (H)
Gross Volume: 1109 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 8 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 168 Kg
HRW-147MS4
TECHNICAL SPECIFICATIONS
External dimension (mm): 1400 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1296 (W) x 700 (D) x 1505 (H)
Gross Volume: 1365 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 8 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 181 Kg
HRW-77MS4-HG
TECHNICAL SPECIFICATIONS
Dimension (mm): 700 (W) x 810 (D) x 2050 (H)
Internal dimension (mm): 596 (W) x 700 (D) x 1505 (H)
Gross Volume: 628 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 116 Kg
HRW-147MS4-HG
TECHNICAL SPECIFICATIONS
Dimension (mm): 1400 (W) x 810 (D) x 2050 (H)
Internal dimension (mm): 1296 (W) x 700 (D) x 1505 (H)
Gross Volume: 1365 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 8 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 210 Kg
SRC900-HL
TECHNICAL SPECIFICATIONS
Dimension (mm): 900 (W) x 785 (D) x 2188 (H)
Internal dimension (mm): 800 (W) x 612 (D) x 1675 (H)
Gross Volume: 803 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 10 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 160 Kg
UP RIGHT FREEZERS
HFW-77MS4-IC
HFW-127MS4-IC
HFW-147MS4-IC
HFW-77MS4-IC
TECHNICAL SPECIFICATIONS
Dimension (mm): 700 (W) x 810 (D) x 2050 (H)
Internal dimension (mm): 596 (W) x 700 (D) x 1505 (H)
Gross Volume: 628 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -25°C
Refrigerant: R404a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 122 Kg
HFW-127MS4-IC
TECHNICAL SPECIFICATIONS
Dimension (mm): 1200 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1076 (W) x 690 (D) x 1495 (H)
Gross Volume: 1109 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -25°C
Refrigerant: R404a
No of Shelves: 8 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 178 Kg
HFW-147MS4-IC
TECHNICAL SPECIFICATIONS
Dimension (mm): 1400 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1296 (W) x 690 (D) x 1495 (H)
Gross Volume: 1365 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -25°C
Refrigerant: R404a
No of Shelves: 8 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 189 Kg
UP RIGHT COMBINATION
HRFW-77MS4 COMBI
HRFW-127MS4 COMBI
HRFW-77MS4 COMBI
TECHNICAL SPECIFICATIONS
External dimension (mm): 700 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 596 (W) x 700 (D) x 1505 (H)
Gross Volume: Freezer: 305 ltrs & Refrigerator: 305 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range Freezer: -16°C to -23°C
Temperature Range Refrigerator: -2°C to 12°C
Refrigerant: R404a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 124 Kg
HRFW-127MS4 COMBI
TECHNICAL SPECIFICATIONS
External dimension (mm): 1200 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 494 (W) x 690 (D) x 1495 (H)
Gross Volume: Freezer: 509 ltrs & Refrigerator: 509 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range Freezer: -7°C to -25°C
Temperature Range Refrigerator: -2°C to 12°C
Refrigerant: Refrigerator: R134a & Freezer: R404a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 206 Kg
UNDER COUNTER CHILLERS
RTW-120MS4
RTW-150MS4
RTW-180MS4
RTW-120MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1200 (W) x 750 (D) x 850 (H)
Internal dimension (mm): 832 (W) x 630 (D) x 588 (H)
Gross Volume: 305 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 98 Kg
RTW-150MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1500 (W) x 750 (D) x 850 (H)
Internal dimension (mm): 1132 (W) x 630 (D) x 588 (H)
Gross Volume: 415 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 112 Kg
RTW-180MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1800 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1432 (W) x 690 (D) x 1495 (H)
Gross Volume: 525 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -2°C to 12°C
Refrigerant: R134a
No of Shelves: 6 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 125 Kg
UNDER COUNTER FREEZERS
FTW-120MS4
FTW-150MS4
FTW-180MS4
FTW-120MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1200 (W) x 750 (D) x 850 (H)
Internal dimension (mm): 832 (W) x 630 (D) x 588 (H)
Gross Volume: 305 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -23°C
Refrigerant: R404a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 100 Kg
FTW-150MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1500 (W) x 750 (D) x 850 (H)
Internal dimension (mm): 1132 (W) x 630 (D) x 588 (H)
Gross Volume: 415 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -23°C
Refrigerant: R404a
No of Shelves: 4 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 114 Kg
FTW-180MS4
TECHNICAL SPECIFICATIONS
Dimension (mm): 1800 (W) x 818 (D) x 2050 (H)
Internal dimension (mm): 1432 (W) x 690 (D) x 1495 (H)
Gross Volume: 525 ltrs
Power Supply: 230 Volts/50Hz (Should be ±6%)
Temperature Range: -7°C to -23°C
Refrigerant: R404a
No of Shelves: 6 nos.
Operation Condition: 5°C to 43°C
Temperature Control: Electronic
Net Weight: 131 Kg
